ConneX Series

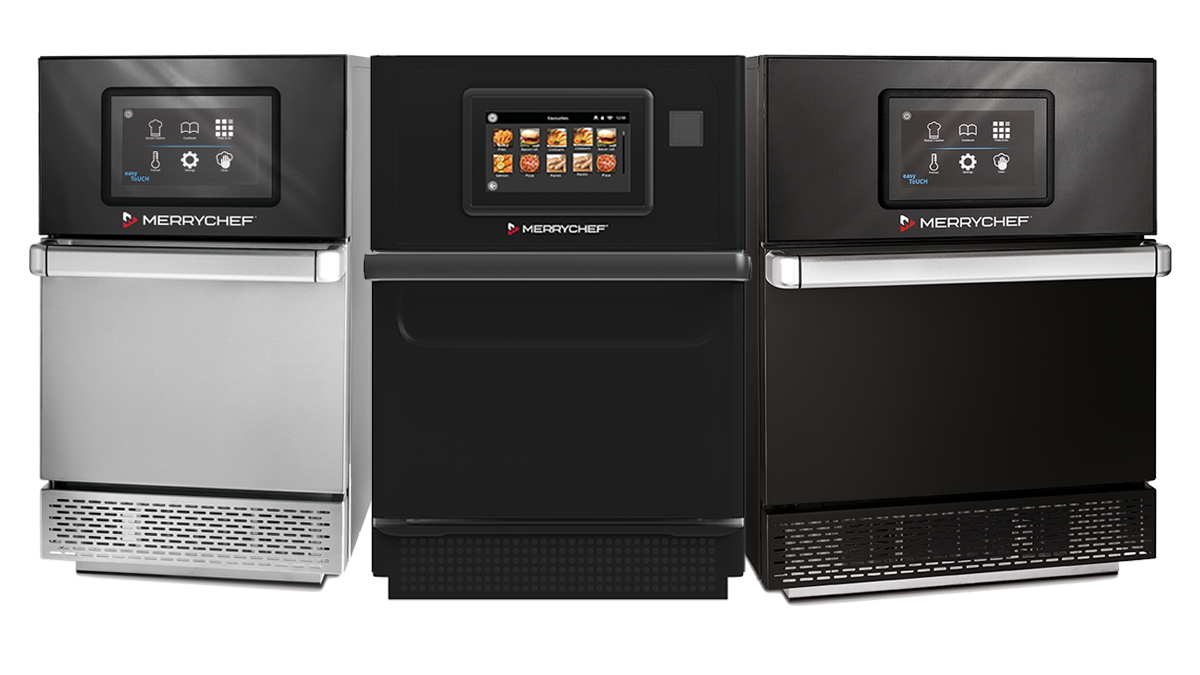

Merrychef ConneX Series

The very latest in high speed ovens, Merrychef conneX® series delivers consistent, high quality food, up to 80% faster than conventional cooking methods.

Its compact, and stylish design, with cool-to-touch sides, allows it to fit anywhere. It’s easy to install, with ventless technology, no need for a ventilation hood, and a standard power unit will work off a 13/16 Amp plug.

The new high definition 7” operating screen, sits in a robust glass surround, and showcases the new easyTouch® 2.0 software. The conneX range delivers the most intuitive operating controller, it works just like a mobile phone, and along with over 100 pre-programmed recipes, operators are very quickly able to deliver consistent, delicious results with every order.

Born connected, the conneX® range comes with Wi-fi and ethernet connectivity as standard, and offers free subscription for the first 12 months after purchase, to the industry leading Welbilt KitchenConnect® platform enabling the ovens to be monitored and menus to be updated remotely.

Like all Merrychef high speed ovens the new Merrychef conneX® series is easy to install, ventless, operates quietly, has cool-to-touch exterior, quick pre-heat and cool down times, low energy usage in standby, providing unbeatable value for money.


Key features

  • Small footprint allowing it to be placed virtually anywhere
  • Patented easy access front mounted air filter
  • Ventless cooking capabilities through a built-in catalytic converter eliminates the need for an extraction fan
  • WiFi/ethernet connected with access to KitchenConnect cloud
  • Cool to touch exterior makes it safe to locate anywhere with no need to allow space around the unit
  • Very easy to clean stainless steel cavity with large rounded corners.
  • Easy to operate with a 7” HD widescreen display and new generation easyTouch® 2.0, icon driven controller





Merrychef ConneX 12e

Installation Type
Table Top
User Interface
easyTouch Screen
Cavity Capacity
30.5cm x30.5cm (12"x 12")

Functions

    • It has the largest cavity to oven width ratio
    • WiFi/Ethernet capability and additional USB slot allows uploading and updating menus
    • Up to 10x faster cooking compared to other conventional cooking methods
    • Plug and Use - Allows you to plug it into standard power sockets for use
    • Easy to operate with a 7” HD widescreen display and new generation easyTouch® 2.0 common controller

Technical Specifications

    • W X H X D  407mm x 588mm x 538mm
    • Weight without options/accessories  47Kgs
    • Power Input Type  Electric
    • Primary Power input  1N ~ 220-230V 50Hz


Merrychef ConneX 12

Installation Type
Table Top
User Interface
easyTouch Screen
Cavity Capacity (W X H x D)
30.5cm x 30.5cm (12"x 12")

Functions

    • It has the largest cavity to oven width ratio
    • WiFi/Ethernet capability and additional USB slot allows uploading and updating menus
    • Up to 10x faster cooking compared to other conventional cooking methods
    • Plug and Use - Allows you to plug it into standard power sockets for use
    • Easy to operate with a 7” HD widescreen display and new generation easyTouch® 2.0 common controller

Technical Specifications

    • W X H X D  356.2mm x 619mm x 641.2mm
    • Weight without options/accessories  58.7Kgs
    • Power Input Type  Electric
    • Primary Power input  1N ~ 220-230V 50Hz


Merrychef ConneX 16

Installation Type
Table Top
User Interface
easyTouch Screen
Cavity Capacity (W X H x D)
40.5cm x 40.5cm (16"x 16")

Functions

    • It has the largest cavity to oven width ratio, Larger cavity capacity than the ConneX 12
    • WiFi/Ethernet capability and additional USB slot allows uploading and updating menus
    • Up to 20x faster cooking compared to other conventional cooking methods
    • Plug and Use - Allows you to plug it into standard power sockets for use
    • Easy to operate with a 7” HD widescreen display and new generation easyTouch® 2.0 common controller

Technical Specifications

    • W X H X D  458.8mm x 619mm x 683.4mm
    • Weight without options/accessories  67.2Kgs
    • Power Input Type  Electric
    • Primary Power input  1N ~ 220-230V 50Hz
