| W x D x H |
42" x 37" x 385/8"
|
| Weight |
320 lb
|
| Power Output | 90000 N/A |
| Power Input Type | Gas - Natural |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Certifications |
![]() ![]() ![]() ![]() ![]() |

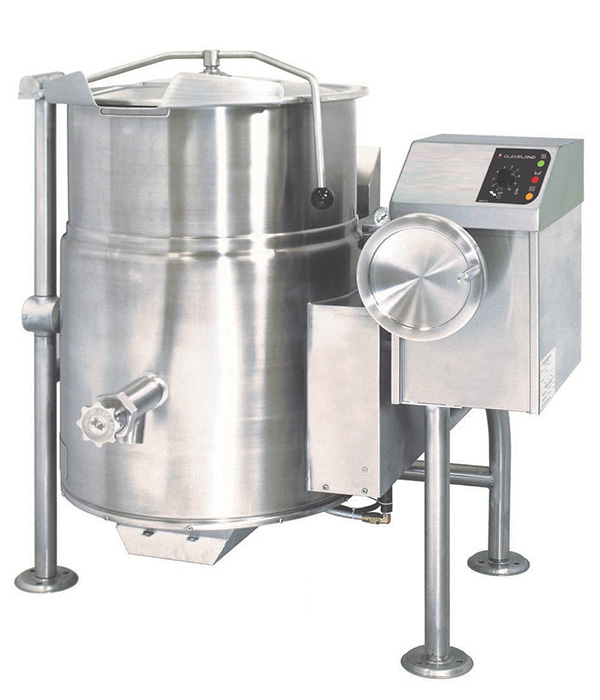

KGL25T: Gas steam kettle, tilting
2/3 STEAM JACKETED "SPLASH PROOF SERIES" 25 GALLONS (100 LITERS)
CLEVELAND, Gas Kettle, self-contained, tilting, Model KGL-25-T; 25 gallons, natural or LP gas, 2/3 Steam Jacketed, Type 304 Stainless Steel and supports. Jacket rated at 50psi with Safety Valve. Complete with "Splash-Proof" Solid-State Water Level, Temperature, and Safety Low Water Power Cut-Off, including L.E.D. Indicators for Heat Cycle and Low Water Warning.
|
Jacket Rating
50 psi steam jacket rating for higher cooking temperatures |
|
Self contained
Gas tilting kettle is easily installed, only needs a gas connection and a 115 volt outlet. |
|
Temperature Control
Precise, consistent temperature control, less than 1°C temperature variance (ideal for simmering). Operating temperature range from 145°- 260°F (63°C-127°C). |
|
Splash Proof
"Splash Proof" solid state control panel for temperature, low water safety, and power "on/off" switch. Accurate L.E.D. indicators for heat cycle and low water warning. |
|
Construction
Kettle and all exterior surfaces are a 304 Stainless Steel with a #4 finish. |
|
Efficiency
Energy efficient (65%), high performance gas-fired heating system for fast heat up and recovery time:Six gallon model with a 34,000 BTU firing rate, and 22,100 BTU directly applied to the product.Twelve gallon model with a 53,000 BTU firing rate, and 34,450 BTU directly applied to the product. |
|
Pressure Regulator
Supplied with Gas Pressure Regulator. |
|
Gas
Standard for natural gas operation |
|
Pouring Lip
Large pouring lip for easier, faster pouring. Heavy duty Rolled Rim design provides strong reinforcement, prevents damages from abuse. |
|
Pressure Gauge
"Splash Proof" recessed pressure/vacuum gauge. |
|
Steam Jacket
Steam jacket permanently filled with treated distilled water, venting and / or refilling is not required. |
|
Spark Ignition
Automatic Electronic Spark Ignition System. |
|
Electrical Connection
Supplied with cord and plug for 115 volt controls. |
|
Power
Twenty-five gallon model with 90,000 BTU firing rate and 58,500 BTU directly applied to the product. |
|
Legs
Support Legs with level adjustable feet, flanged for floor bolting. |
|
Tilting
Tilt Mechanism of roller bearings and case hardened self-locking worm and segment gear. |
GAS KETTLES, MODEL KGL25T 25 GALLONS
316 Stainless Steel Liner(316G) |
|
Basket Strainers(BS & TBS) |
|
FaucetHot and cold water faucet (DPK), or Cold Water (SPK). Requires bracket (FBKT) |
|
Food Strainers(FS) |
|
GasPropane Gas Operation (PG) |
|
Kettle Markings(KM) |
|
Lift Off Cover(CL) |
|
Measuring Strips(MS) |
|
2" Tangent Draw-Off Valve(TD2) |
|
Spring Assist Cover(CHS) |
